KITZ 055-36149 3 FLG CI GLOBE VLV 76

MFR Part #: 76-300
SKU #: 1003855
Brand: KITZ
UPC: 747066005685

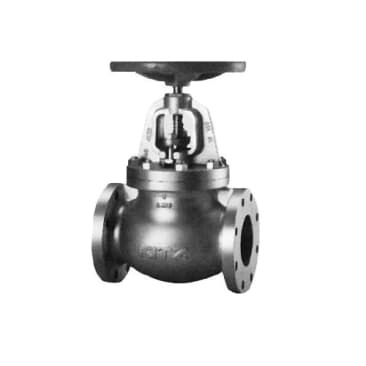

KITZ 76 Series 76-300 Globe Valve, 3 in, Flanged, Iron, 200 psi
ANSI B16.10 Class 125 | MSS-SP-85 Type 1

Notice something off about this product?

KITZ Globe Valve, 76 Series, 3 in Nominal, Flanged Connection, 200 psi, Pressure Class: 125 lb, Gas, Non-Shock Cold Water, Oil, Saturated Steam Media, 9-1/2 in Inlet to Outlet Length, 13.9 in Top to Inlet Center, Iron Body, Brass Stem, Bronze Disc, Iron Handle, Handwheel Operator, 121 Cv Flow Coefficient (Cv), 353 deg F, Material Standard: ASTM A126, ASTM B124 C37700, ASTM B62

Product Details

KITZ Globe Valve, 76 Series, 3 in Nominal, Flanged Connection, 200 psi, Pressure Class: 125 lb, Gas, Non-Shock Cold Water, Oil, Saturated Steam Media, 9-1/2 in Inlet to Outlet Length, 13.9 in Top to Inlet Center, Iron Body, Brass Stem, Bronze Disc, Iron Handle, Handwheel Operator, 121 Cv Flow Coefficient (Cv), 353 deg F, Material Standard: ASTM A126, ASTM B124 C37700, ASTM B62

Attributes

Nominal Size: 3 in
Pressure Class: 125 lb
Body Material: Iron
Connection Type: Flanged
Disc Material: Bronze
Flow Coefficient (Cv): 121 Cv
Handle Material: Cast Iron, Iron
Inlet to Outlet Length: 9-1/2 in
Material Standard: ASTM A126, ASTM B124 C37700, ASTM B62
Media: Gas, Non-Shock Cold Water, Oil, Saturated Steam
Operator Type: Handwheel
Pressure Rating: 200 psi
Series: 76 Series
Stem Material: Brass
Temperature Rating: 353 deg F
Top to Inlet Center: 13.9 in

Resources

Catalog
Specification Sheet
