KITZ 11-200 Image 1

KITZ 052-11503 2 IP GLOBE VLV 11

MFR Part #: 11-200
SKU #: 1133173
Brand: KITZ
UPC: 05211503

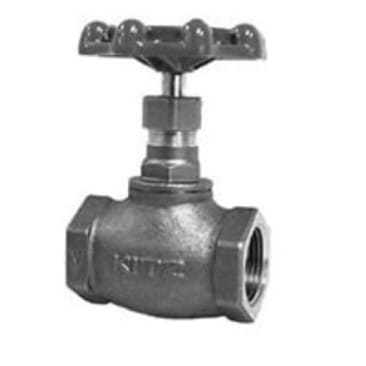

KITZ 11-200 Globe Valve, 2 in, FNPT, Bronze, 200 psi
ASME B1.20.1 | MSS SP-80 Type 2

Notice something off about this product?

KITZ Globe Valve, 2 in Nominal, FNPT Connection, 200 psi, Pressure Class: 125, Gas, Non-Shock Cold Water, Oil, Saturated Steam Media, 4.69 in Inlet to Outlet Length, 7.09 in Top to Inlet Center, Bronze Body, Brass Stem, Bronze Disc, Graphite Packing, Aluminum Handle, Handwheel Operator, 45 Cv Flow Coefficient (Cv), 406 deg F, Material Standard: ASTM B62, ASTM B85

Product Details

KITZ Globe Valve, 2 in Nominal, FNPT Connection, 200 psi, Pressure Class: 125, Gas, Non-Shock Cold Water, Oil, Saturated Steam Media, 4.69 in Inlet to Outlet Length, 7.09 in Top to Inlet Center, Bronze Body, Brass Stem, Bronze Disc, Graphite Packing, Aluminum Handle, Handwheel Operator, 45 Cv Flow Coefficient (Cv), 406 deg F, Material Standard: ASTM B62, ASTM B85

Attributes

Nominal Size: 2 in
Pressure Class: 125
Body Material: Bronze
Connection Type: FNPT
Disc Material: Bronze
End Type: FNPT
Flow Coefficient (Cv): 45 Cv
Handle Material: Aluminum
Inlet to Outlet Length: 4.69 in
Material Standard: ASTM B62, ASTM B85
Media: Gas, Non-Shock Cold Water, Oil, Saturated Steam
Model: AK125C
Operator Type: Hand Wheel, Handwheel
Packing Material: Graphite
Pressure Rating: 200 psi
Stem Material: Brass
Temperature Rating: 406 deg F
Top to Inlet Center: 7.09 in

Resources

Catalog
Specification Sheet
