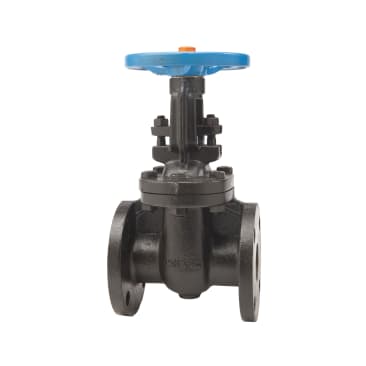

KITZ 72-400 Image 1

KITZ 055-44184 4 125# FLG CI GATE VLV 72

MFR Part #: 72-400
SKU #: 1006200
Brand: KITZ
UPC: 747066005364
KITZ 72 Series 72-400 Gate Valve, 4 in, Flanged, Iron, 125 psi, 200 psi
ANSI B16.10/B16.1 | MSS-SP-70 Type 1

Notice something off about this product?

KITZ Gate Valve, 72 Series, 4 in Nominal, Flanged Connection, 125 psi, 200 psi, Pressure Class: 125 lb, Gas, Oil, Steam, Water Media, 9 in Inlet to Outlet Length, 20.94 in Top to Inlet Center, Iron Body, Bronze Seat, Brass Stem, Cast Iron Disc, Bronze Trim, Cast Iron Handle, Standard Handwheel Operator, -20 to 406 deg F, Material Standard: ASTM A126 Class B, B124 C37700

Product Details

KITZ Gate Valve, 72 Series, 4 in Nominal, Flanged Connection, 125 psi, 200 psi, Pressure Class: 125 lb, Gas, Oil, Steam, Water Media, 9 in Inlet to Outlet Length, 20.94 in Top to Inlet Center, Iron Body, Bronze Seat, Brass Stem, Cast Iron Disc, Bronze Trim, Cast Iron Handle, Standard Handwheel Operator, -20 to 406 deg F, Material Standard: ASTM A126 Class B, B124 C37700

Attributes

Body Material: Iron
Connection Type: Flanged
Nominal Size: 4 in
Pressure Class: 125 lb
Pressure Rating: 125 psi, 200 psi
Disc Material: Cast Iron
Handle Material: Cast Iron
Inlet to Outlet Length: 9 in
Material Standard: ASTM A126 Class B, B124 C37700
Media: Gas, Oil, Steam, Water
Operator Type: Standard Handwheel
Seat Material: Bronze
Series: 72 Series
Stem Material: Brass
Temperature Rating: -20 to 406 deg F
Top to Inlet Center: 20.94 in
Trim Material: Bronze

Features

  • Outside screw and yoke rising stem
  • Bolted bonnet
  • Solid wedge disc
